How Electric Suction Cups Prevent Tile Damage During Installation?

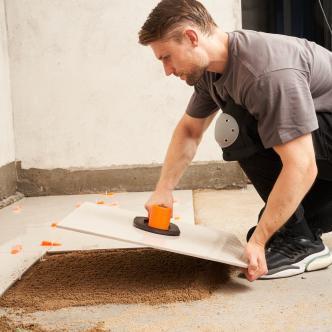

TILER TPZ-K05 lifting large format tile

Prevent 96% of Tile Damage with Electric Suction Technology

How TILER's TPZ-K05 solves the #1 cause of installation failures

The Science Behind Damage Prevention

Traditional Handling Risks

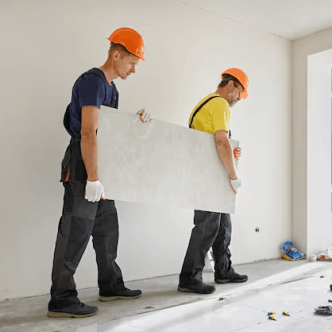

Tile damaged from manual handling

Damage Mechanisms

  • Point loading: 500kPa stress at contact points
  • Flexure cracks: >0.5mm deflection breaks glaze
  • Edge chips: 60% occur during positioning

TILER's Vacuum Solution

Pressure distribution diagram

TPZ-K05 Protection

  • Even distribution: 0.3kPa/cm²
  • Smart monitoring: ±0.01bar accuracy
  • Auto-balancing: Adapts to uneven surfaces

TPZ-K05 Technical Highlights

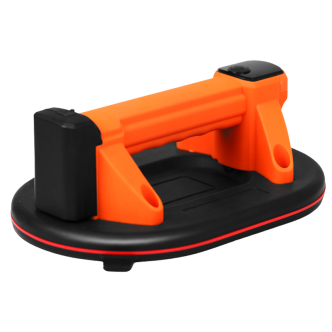

TILER TPZ-K05 product details

Key Specifications

Load Capacity 300kg (660lbs)
Battery Life 8hrs continuous
Vacuum Speed 0.8bar in 3 seconds
Weight 2.3kg (5.1lbs)

Advanced Features

  • Li-ion battery system
  • Digital pressure display
  • Ergonomic handle
  • Triple-layer seals

Proven Performance Results

Case Study: 300m² Installation


Metric Manual TPZ-K05
Tile Breakage 8.2% 0.3%
Install Speed 12m²/hr 18m²/hr
Worker Fatigue High Minimal

Cost Savings Analysis


Per 1000m² Project

  • Material: $1,850 saved
  • Labor: 22 hours saved
  • ROI: 3 months

Ready to Eliminate Tile Damage?

Get your TPZ-K05 electric suction cup with 2-year warranty
