TILER 8102G-2GH Manual Tile Cutter - Professional Grade High-Precision Tool for Contractors | OEM/ODM & Wholesale Distribution
- Model
- 8102G-2GH
Item specifics
- Material
- Steel
- Cutting lengths
- 800mm, 1000mm, 1200mm
- Cutting thickness
- 4mm to 16mm
- Separator power
- 1000kgs
- Accuracy
- within 1.0mm
- Blade material
- Tungsten carbide
- Laser guide
- Yes
- Gauge
- All-aluminum and precise
Review
- F***u
- 2024/1/18 14:07
I obtained this tile cutter as I have to undertake a job to replace kitchen tile in a condo. I am a total beginner but after some research, I opted for this item as it notes that it can be used by "beginners ...who are looking for an easy-cutting, no-dust, and no-noise tile cutter." I am hoping this is truly the case. I see there is a laser device to assist in producing accurate cutting lines. The lockable breaker also helps to see the performance cutting. It is well-made and portable (a total bonus). When the job is complete, I'll post more pictures.
Description
◢ SPECIFICATION
|
ART.
|
MAX.CUTTING LENGTH
(mm) |
MAX.DIAGONAL CUTTING LENGTH(mm) |
CUTTING
THICKNESS (mm) |
BREAKING
POWER (kg) |
SIZE OF CUTTING WHEEL (mm) | QTY/CTN | WEIGHT (kg) | LxWxH (cm) | LASER (Y/N) |
|
8102G-2GH-800
|
800
|
565 |
4-16
|
1000
|
22*6*6 | 1 | 12.5 | 113*18*26 | Y |
|
8102G-2GH-1000
|
1000
|
705 |
4-16
|
1000
|
22*6*6 | 1 | 15 | 133*18*26 | Y |
|
8102G-2GH-1200
|
1200
|
850 |
4-16
|
1000
|
22*6*6 | 1 | 17 | 153*18*26 | Y |
◢DESCRIPTION

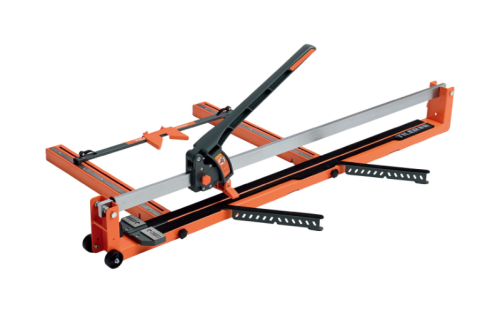

TILER Manual Tile Cutting Machine 8102G-2GH with Full Iron Frame, Equipped with Laser Beam and Tungsten Carbide Cutting Wheel, Designed for Precision Cutting of Ceramic Floor Tiles. Manufacturer.
▪ TILER Manual Tile Cutting Machine 8102G-2GH, specifically designed for professional installers. This cutting machine offers straight and diagonal cutting, with cutting lengths of 800mm, 1000mm, and 1200mm, as well as diagonal cutting lengths of 565mm, 705mm, and 850mm. The machine features detachable power, with accuracy within 1.0mm, making it highly suitable for cutting tiles ranging from 4mm to 16mm in thickness.
▪The cutting machine is constructed with high-quality steel and alloy steel, ensuring durability. The thickness and dimensions of the structure have been optimized for precise cutting, while the laser cutting tool ensures accuracy. The cutting roller (blade) has a size of 22mm, and a TILER high-quality blade offers long-lasting performance.
▪Thanks to its fully enclosed design, this tool is dust-free and requires minimal adjustments. The all-aluminum panel is not only aesthetically pleasing but also precise. Additionally, the portable stand with screw positioning makes installation effortless. The presence of movable wheels allows for convenient transportation.
▪ The cutting machine is equipped with an infrared laser that enables even more precise cutting. It also features a diagonal positioning device for diagonal cutting, making it highly suitable for various cutting tasks. The concealed stand is easy to operate, and the patented magnetic breaking bar allows for convenient cutting.
▪ Manual Tile Cutter 8102G-2GH ▪
Enhance your professional tile services with the 8102G-2GH manual tile cutter. With a 1200mm cutting length and 1000kg power, this cutter is designed for heavy-duty use. Its robust steel structure guarantees continuous and precise cutting. Additionally, the fully enclosed design of this cutting machine is equipped with an infrared laser and a diagonal positioning device, which greatly improves accuracy.
➣Order now and stay ahead of the competition!
◢ MODELS FOR 8102G-2GH
▪ 8102G-2GH-800 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material: steel
Guide rail material: alloy steel
Guide rail section size:40*15mm
Laser cut pointer: yes
Cutting roller (cutter):22mm
▪ 8102G-2GH-1000 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material: steel
Guide rail material: alloy steel
Guide rail section size:40*15mm
Laser cut pointer: yes
Cutting roller (cutter):22mm
▪ 8102G-2GH-1200 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material: steel
Guide rail material: alloy steel
Guide rail section size:40*15mm
Laser cut pointer: yes
Cutting roller (cutter):22mm
◢FAQ
What is the maximum thickness of tiles that this cutting machine can handle?
The TILER Manual Tile Cutting Machine 8102G-2GH can cut tiles within a thickness range of 4mm to 16mm.
Apart from tiles and ceramic floor tiles, can this cutting machine be used to cut other types of materials as well?
The TILER Manual Tile Cutting Machine 8102G-2GH is specifically designed for cutting porcelain and ceramic floor tiles. While it can be used for other materials, it is not recommended as it may damage the cutting tool or result in inaccurate cuts.
Is the cutting machine easy to transport?
Yes, the TILER Manual Tile Cutting Machine 8102G-2GH is equipped with movable wheels, making it easy to transport. Additionally, the concealed stand makes it convenient to carry.
What type of blade does this cutting machine use?
The TILER Manual Tile Cutting Machine 8102G-2GH uses TILER high-quality blades and tungsten carbide cutting wheels. This type of blade is renowned for its durability and precise cutting of porcelain and ceramic floor tiles.
How accurate is the precision of this cutting tool?
The TILER Manual Tile Cutting Machine 8102G-2GH has a precision level of 1.0mm, making it highly suitable for the precise cutting of tiles.
Is this cutting tool dust-free?
Yes, the TILER Manual Tile Cutting Machine 8102G-2GH is fully enclosed and sealed, ensuring a dust-free operation. This feature also eliminates the need for adjustments, saving time and effort during the cutting process.
