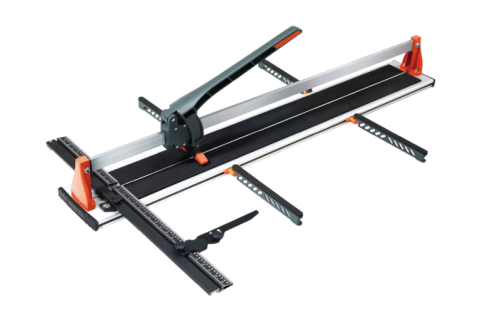

TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut
- Model
- 8102G-2A-DJH
Item specifics
- Material
- Aluminum
- Cutting Wheel Material
- Tungsten Carbide
- Cutting Length
- 900mm/1200mm/1550mm
- Cutting Thicknes
- 4mm to 16mm
- Cutting Accuracy
- Within 1.0mm
- Maximum Breaking Power
- 1000kgs
- Angle Cutting Range
- 0° to 60°
- Cutting Gauge Length
- 80cm
- Grip Material
- TPR
Review
- H***a
- 2024/1/18 14:23
tile cracker/slicer is perfect. if your installing those large 2x4 tiles this is awesome for the job and fair price compared to local supply places, highly recommend this tool. (30 plus years contractor)
Description
◢ SPECIFICATION
|
ART.
|
MAX.CUTTING LENGTH
(mm) |
MAX.DIAGONAL CUTTING LENGTH(mm) |
CUTTING
THICKNESS (mm) |
BREAKING
POWER (kg) |
SIZE OF CUTTING WHEEL (mm) | QTY/CTN | WEIGHT (kg) | LxWxH (cm) |
|
8102G-2A-DJH-900
|
900
|
635 |
4-16
|
1000
|
22*6*6 | 2 | 20 | 116*25*26 |
|
8102G-2A-DJH-1200
|
1200
|
850 |
4-16
|
1000
|
22*6*6 | 1 | 14 | 146*25*26 |
8102G-2A-DJH-1550 | 1550 | 1095 | 4-16 | 1000 | 22*6*6 | 1 | 18 | 181*25*26 |
◢ DESCRIPTION
TILER 8102G-2A-DJH Manual Porcelain Ceramic Tile Cutter | Accurate and Easy Cutting |for porcelain tile cut, 10 Ball Bearing inside, for Precision Cutting Porcelain Ceramic Floor Tiles Manufacturer Wholeasale【 900mm|36inch；1200mm|48inch；1550mm|62inch】
▪ Manual Tile Cutter 8102G-2A-DJH Aluminum Base， its double-layer integrated aluminum base and strong die-casting aluminum support parts offer rigidity, stability, and precision, while still being lightweight and easy to transport. The machine is designed to be user-friendly, with a human-engineering big handle and comfortable TPR grip.
▪ The machine features a high-performance breaking device with a maximum power of 1000kgs, which can be locked and auto-released to provide a direct vision of the scoring and cutting line. This ensures that the tiles are cut accurately and efficiently, with a tolerance of within 1.0mm.
▪ Manual Tile Cutter 8102G-2A-DJH can cut a variety of tile thicknesses, ranging from 4mm to 16mm, and can make both straight cuts and angle cuts up to 60°. It also comes with an 80cm aluminum die-casting gauge with laser marking for precise cutting. The cutting blade is simple and convenient to replace and can last for approximately 2000 meters of cutting under normal conditions.
▪ Overall, Manual Tile Cutter 8102G-2A-DJH is highly effective for cutting various types of tiles, including heavy-duty porcelain tiles, and can save professional installers time and effort in their work.
▪ Manual Tile Cutter 8102G-2A-DJH Aluminum Base ▪
Upgrade your tiling game with the 8102G-2A-DJH Aluminum Base Manual Tile Cutter. Lightweight yet precise, it features an aluminum base and die-casting aluminum support parts for stability and accuracy. With its high-performance breaking device and tolerance of within 1.0mm, it's perfect for cutting a variety of tile thicknesses and making both straight and angled cuts up to 60°.
➣ Order now and stay ahead of the competition!
➣ Order now and stay ahead of the competition!
◢ MODELS FOR 8102G-2A-DJH
▪ 8102G-2A-DJH-900 ▪
Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:aluminum
Guide rail material:alloy steel
Guide rail section size:40*12mm
Cutting roller (cutter):22mm
▪ 8102G-2A-DJH-1200 ▪
Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:aluminum
Guide rail material:alloy steel
Guide rail section size:40*12mm
Cutting roller (cutter):22mm
▪ 8102G-2A-DJH-1550 ▪
Types:straight cut,angle cut(0°-60°)
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:aluminum
Guide rail material:alloy steel
Guide rail section size:40*12mm
Cutting roller (cutter):22mm
