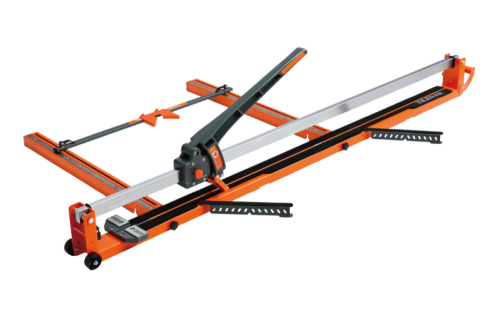

TILER 8102G-T3 Professional Porcelain Ceramic Tile Cutter | Efficient Cutting Solution|Smooth & Clean Cuts
- Model
- 8102G-T3
Item specifics
- Material
- Steel
- Cutting lengths
- 1200mm,1600mm,1800mm
- Cutting thickness
- 4mm to 16mm
- Separator power
- 1000kgs
- Accuracy
- Within 1.0mm
- Blade material
- Tungsten carbide
- Laser guide
- Yes
- Gauge
- All-aluminum and precise
- Transport wheels
- Yes
Review
- M***n
- 2024/1/18 14:14
This cutter is a lot larger than I was expecting - 4' in length and can handle up to a 40" cut. The cutting head slides smoothly on the bar, and after a bit of practice you can make cuts very quickly using the plastic break bar just behind the cutting wheel. The laser is moderately useful - mostly when making sure your tile does not move when free-handing it. I have a large water-cooled electric tile cutter, and this manual cutter is great to have inside for quick cuts when the larger tile cutter doesn't make sense. For smaller projects, this cutter alone will do just fine.
Description
◢ SPECIFICATION
|
ART.
|
MAX.CUTTING LENGTH
(mm) |
MAX.DIAGONAL CUTTING LENGTH(mm) |
CUTTING
THICKNESS (mm) |
BREAKING
POWER (kg) |
SIZE OF CUTTING WHEEL (mm) | QTY/CTN | WEIGHT (kg) | LxWxH (cm) | LASER (Y/N) |
|
8102G-T3-1200
|
1200
|
850 |
4-16
|
1200
|
22*6*6 | 1 | 18 | 153*18*26 | Y |
|
8102G-T3-1600
|
1600
|
1130 |
4-16
|
1200
|
22*6*6 | 1 | 28 | 193*18*26 | Y |
|
8102G-T3-1800
|
1800
|
1270 |
4-16
|
1200
|
22*6*6 | 1 | 30 | 213*18*26 | Y |
◢ DESCRIPTION
TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro All-Iron Frame with Laser Guide， Tungsten Carbide Cutting Wheel, Dual Rugged Iron Rail, for Precision Cutting Porcelain Ceramic Floor Tiles Manufacturer Wholeasale【1200mm|48inch；1600mm|64inch；1800mm|72inch】
▪ Manual Tile Cutter 8102G-T3 Super-Pro, designed for professional installers. This cutter offers straight and diagonal cuts with cutting lengths of 1200mm, 1600mm, and 1800mm, as well as diagonal cutting lengths of 850mm, 1130mm, and 1270mm. With a separator power of 1200kgs and an accuracy of 1.0mm, this cutter is ideal for cutting tiles with thicknesses ranging from 4mm to 16mm.
▪ Crafted from high-quality steel and alloy steel guide rails, this cutter is built to last， and the laser cut pointer ensures accuracy. The cutting roller (cutter) measures 22mm and is equipped with a TILER premium blade for long-lasting performance.
▪ Thanks to its fully enclosed and self-adjusting sliding system, this cutter is dust-free and requires no adjustment. The all-aluminum gauge is not only beautiful but also precise, while the patented magnetic break bar allows for convenient cutting. The hidden supporters make it easy to carry, and the specially designed extended handle provides easy operation, aesthetic appeal, and a comfortable grip.
▪ Equipped with an infrared laser for more precise cutting and a diagonal positioning device for cutting diagonals, this cutter is ideal for a variety of cutting tasks. With movable wheels for easy movement and a thickened 20mm guide rail, this cutter is both mobile and durable.
▪ In summary, our premium tile cutter is the perfect choice for professional installers who demand precision, durability, and ease of use. With its innovative features and high-quality construction, this cutter is sure to exceed your expectations.
▪ Manual Tile Cutter 8102G-T3 Super-Pro ▪
Enhance your professional tile services with the 8102G-T3 Super-Pro manual tile cutter. With an 1800mm cutting length and 1200kg power, this cutter is designed for heavy-duty use. Its robust steel structure guarantees continuous and precise cutting. Additionally, the fully enclosed design of this cutting machine is equipped with an infrared laser and a diagonal positioning device, which greatly improves accuracy.
➣ Order now and stay ahead of the competition!
➣ Order now and stay ahead of the competition!
◢ MODELS FOR T3
▪ 8102G-T3-1200 ▪
Types :straight cut,diagonal cut
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:steel
Guide rail material:alloy steel
Guide rail section size:40*15mm
Laser cut pointer:yes
Cutting roller (cutter):22mm
▪ 8102G-T3-1200 ▪
Types :straight cut,diagonal cut
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:steel
Guide rail material:alloy steel
Guide rail section size:40*20mm
Laser cut pointer:yes
Cutting roller (cutter):22mm
▪ 8102G-T3-1200 ▪
Types :straight cut,diagonal cut
Accuracy:within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:16mm
Base material:steel
Guide rail material:alloy steel
Guide rail section size:40*20mm
Laser cut pointer:yes
Cutting roller (cutter):22mm
◢ FAQ
How easy is it to transport this cutter?
The TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro has movable wheels and hidden supporters, which make it easy to transport.
What type of blade does this cutter use?
The TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro uses a tungsten carbide cutting wheel 8117/22*6*6, which is durable and provides precise cuts.
Is this cutter dust-free?
Yes, the TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro has a fully enclosed slider, which makes it dust-free and eliminates the need for adjustment.
Does this cutter have a laser guide?
Yes, the TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro has a laser guide for precise cutting.
What is the warranty on this cutter?
The TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro comes with a one-year warranty from the manufacturer, which covers any defects in materials or workmanship.
What are the differences between the TILER Manual Tile Cutter 8102G-2GH and TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro?
The TILER Manual Tile Cutter 8102G-2GH and TILER Professional Porcelain Ceramic Tile Cutter 8102G-T3 Super-Pro differ in several ways, including length of handle, cutting length, rail structure, and price. 8102G-T3 is designed for more advanced cutting tasks, while 8102G-2GH is suitable for general cutting needs.
