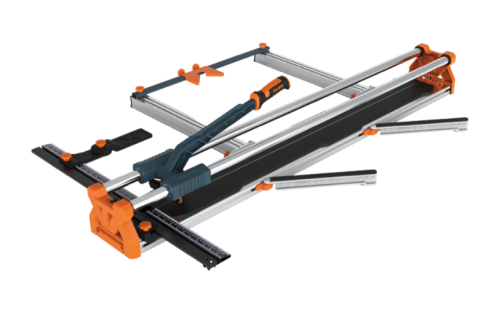

TILER 8106T-3A-DJ Extend Max Tile Cutter Aluminium Base- Engineered for Professional Precision | Exclusive OEM/ODM Services & Wholesale Distribution Solutions | Best for Resellers and Importers
- Model
- 8106T-3A-DJ
Item specifics
- Base Material
- Aluminium
- Cutting lengths
- 600mm, 800mm, 900mm,1000mm, 1200mm
- Cutting thickness
- 4mm to 18mm
- Separator power
- 1000kgs
- Accuracy
- within 1.0mm
- Blade material
- Tungsten carbide
- Gauge
- 80cm Aluminum gauge
Review
Description
◢ SPECIFICATION
|
ART.
|
MAX. CUTTING LENGTH (mm)
|
MAX. DIAGONAL CUTTING LENGTH （mm) |
CUTTING THICKNESS (mm)
|
BREAKING POWER (kg)
|
WHEEL SIZE (mm) | QTY/CTN | WEIGHT (kg) | L x W x H (cm) | LASER (Y/N) |
|
8106T-3A-DJ-600
|
600
|
425 |
4-18
|
1000
|
22 | 2 | / | 93*48.5*22.5 | N |
|
8106T-3A-DJ-800
|
800
|
565 |
4-18
|
1000
|
22 | 2 | / | 113*48.5*22.5 | N |
|
8106T-3A-DJ-900
|
900
|
635 |
4-18
|
1000
|
22 | 1 | / | 123*25*22.5 | N |
8106T-3A-DJ-1000 | 1000 | 705 | 4-18 | 1000 | 22 | 1 | / | 133*25*22.5 | N |
8106T-3A-DJ-1200 | 1200 | 850 | 4-18 | 1000 | 22 | 1 | / | 153*25*22.5 | N |
◢DESCRIPTION
TILER 8106T-3A-DJ Extend Max Tile Cutter Aluminium Base Engineered for Professional Precision | Exclusive OEM/ODM Services & Wholesale Distribution Solutions | Best for Resellers and Importers
▪ 30mm dual-rail bearing sliding system — stable, precise, smooth cuts across the full cutting length
▪ High-strength aluminum base — lightweight and corrosion-proof for tough job-site conditions
▪ Ergonomic handle — comfortable grip for fatigue-free extended use
▪ 80cm aluminum large square — built-in reference for accurate measurement, no separate tool needed
▪ Removable & foldable L-shaped support frame — adapts to various tile sizes; enables precise positioning and batch repeat cutting
▪ Ø22×Ø6×6mm YG-6X bearing wheel — glides smoothly for clean scoring lines on hard porcelain and ceramic tiles
▪ Supports 45° miter cuts, one-handed operation, magnetic foot, repetitive batch cuts
◢ MODELS FOR 8100T-3A-DJ
▪ 8106T-3A-DJ-600 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum
Guide rail material: alloy steel
Guide rail diameter: 30mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-1000 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum
Guide rail material: alloy steel
Guide rail diameter: 30mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-800 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum
Guide rail material: alloy steel
Guide rail diameter: 30mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-1200 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum
Guide rail material: alloy steel
Guide rail diameter: 30mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-900 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum
Guide rail material: alloy steel
Guide rail diameter: 30mm
Cutting roller (cutter):22mm
◢FAQ
What is the TILER 8106T-3A-DJ tile cutter?
The 8106T-3A-DJ is TILER’s Extend Max manual tile cutter, available in 5 sizes from 600mm to 1200mm. It features a 30mm dual-rail bearing sliding system, a Ti-coated YG-6X scoring wheel, and cuts tile up to 18mm thick.
What’s the difference between the -600, -800, -900, -1000, and -1200 models?
Only the machine size and max cutting length differ. Cutting length ranges from 600 to 1200mm. All five models use the same wheel, rail system, and 18mm max thickness.
Can this cutter handle porcelain tiles?
Yes. The Ø22×Ø6×6mm YG-6X wheel is designed for clean scoring on hard porcelain and ceramic tiles.
What is the maximum tile thickness?
18mm across all five sizes.
Does it support 45° diagonal cuts?
T Yes, the cutting head supports 45° diagonal cuts.
Can I operate it with one hand?
Yes. The ergonomic handle and dual-rail bearing slide are designed for one-handed operation.
