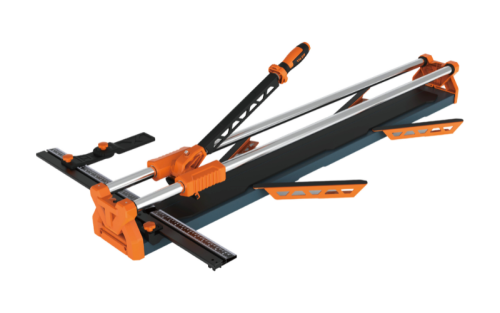

TILER 8100T-3S-DJ Manual Tile Cutter Designed for Professionals High-Precision | OEM/ODM Manufacturing & Wholesale Distribution Services
- Model
- 8100T-3S-DJ
Item specifics
- Material
- Aluminum alloy
- Cutting lengths
- 600mm, 800mm, 900mm,1000mm, 1200mm
- Cutting thickness
- 4mm to 18mm
- Separator power
- 1000kgs
- Accuracy
- within 1.0mm
- Blade material
- Tungsten carbide
- Gauge
- Aluminum
Review
Description
◢ SPECIFICATION
|
ART.
|
MAX. CUTTING LENGTH (mm)
|
MAX. DIAGONAL CUTTING LENGTH （mm) |
CUTTING THICKNESS (mm)
|
BREAKING POWER (kg)
|
WHEEL SIZE (mm) | QTY/CTN | WEIGHT (kg) | L x W x H (cm) | LASER (Y/N) |
|
8106T-3A-DJ-600
|
600
|
425mm |
4-18
|
1000
|
22*6*6 | 2 | 25 | 92*47.5*27.5 | N |
|
8106T-3A-DJ-800
|
800
|
565 |
4-18
|
1000
|
22*6*6 | 2 | 27 | 122*47.5*27.5 | N |
|
8106T-3A-DJ-900
|
900
|
635 |
4-18
|
1000
|
22*6*6 | 1 | 16.5 | 120*23*25cm | N |
8106T-3A-DJ-1000 | 1000 | 705 | 4-18 | 1000 | 22*6*6 | 1 | 17 | 130*23*25cm | N |
8106T-3A-DJ-1200 | 1200 | 860 | 4-18 | 1000 | 22*6*6 | 1 | 18 | 150*23*25cm | N |
◢DESCRIPTION
TILER 8106T-3A-DJ Manual Tile Cutter Designed for Professionals High-Precision | OEM/ODM Manufacturing & Wholesale Distribution Services
Precision Cutting System: Features 20mm chrome-plated steel guides and a premium bearing sliding system for smooth, accurate, and straight cuts every time.
Versatile Cutting Angles: Equipped with an 80cm aluminum ruler, facilitating easy and precise repetitive cuts as well as 45-degree angle cuts.
Sturdy and Stable Construction: Built with an aluminum base and a rigid support frame, enhanced by a movable rail support bar for increased stability during operation.
Durable Chrome-Plated Components: Incorporates robust 20mm chrome-plated steel guide rails, ensuring long-lasting durability and resistance to wear.
Multiple Size Options: Available in various model sizes to handle different tile dimensions, providing flexibility for a range of project requirements.
◢ MODELS FOR 8106T-3A-DJ
▪ 8106T-3A-DJ-600 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Guide rail diameter: 20mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-1000 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Guide rail diameter: 20mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-800 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Guide rail diameter: 20mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-1200 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Guide rail diameter: 20mm
Cutting roller (cutter):22mm
▪ 8106T-3A-DJ-900 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Guide rail diameter: 20mm
Cutting roller (cutter):22mm
◢FAQ
What tile materials can the 8106T-3A-DJ handle?
The Ø22×Ø6×6mm YG-6X tungsten carbide wheel delivers clean, smooth score lines on porcelain and ceramic tiles. Max cutting thickness is 18mm across all five sizes. For natural stone or extra-thick industrial tiles, please confirm with TILER before ordering.
What is the difference between the five sizes (600/800/900/1000/1200mm)?
Only the machine size and max cutting length differ. From 600 to 1200mm, all other specs are identical — the same 30mm dual-rail bearing system, the same YG-6X scoring wheel, and the same 18mm max thickness.
How smooth and precise is the sliding mechanism during extended use?
The 30mm dual-rail bearing sliding system tracks dead-straight with minimal play, delivering consistent, precise score lines from the first cut to the last — even after all-day use on large-format tile projects.
Is this machine durable enough for professional, daily use?
Yes, it is built for professional demands. The critical components, like the 30mm chrome-plated steel guides, are designed to resist wear and tear from daily use, ensuring long-term durability and reliability on the job site.
What is the minimum order quantity for bulk or OEM orders?
TILER supports OEM / ODM / private-label orders. MOQ varies by customization level. For standard stock orders, please contact us directly to discuss volume pricing, lead time, and customization options.
Can you provide samples for quality inspection before a bulk order?
Yes. Sample orders are available. TILER also welcomes factory audits and can provide relevant certifications (ISO 9001, BSCI, GS, etc.). Contact us at info@tilertool.com with your requirements.
