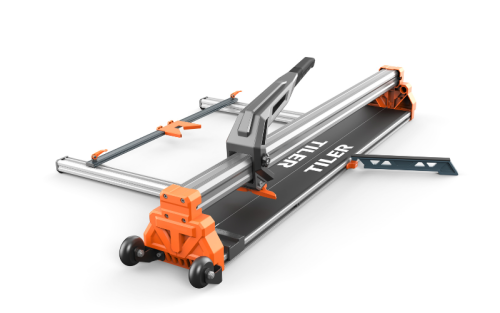

TILER 8200 Professional Manual Tile Cutter | Linear Rails for Large Format Tiles | OEM/ODM Wholesale Solutions for Distributors and Importers
- Model
- 8100T
Item specifics
- Material
- Aluminum alloy
- Cutting lengths
- 1200mm,1600mm,1800mm
- Cutting thickness
- 4mm to 18mm
- Separator power
- 1000kgs
- Accuracy
- within 1.0mm
- Blade material
- Tungsten carbide
- Gauge
- Aluminum
Review
Description
◢ SPECIFICATION
|
ART.
|
MAX. CUTTING LENGTH (mm)
|
MAX. DIAGONAL CUTTING LENGTH （mm) |
CUTTING THICKNESS (mm)
|
BREAKING POWER (kg)
|
WHEEL SIZE (mm) | QTY/CTN | WEIGHT (kg) | L x W x H (cm) | LASER (Y/N) |
|
8200-1200
|
1200
|
860 |
4-18
|
1000
|
22x6x6 | 1 | 28 | 158*28*32 | N |
|
8200-1600
|
1600
|
1150 |
4-18
|
1000
|
22x6x6 | 1 | 33.5 | 198*28*32 | N |
|
8200-1800
|
1800
|
1300 |
4-18
|
1000
|
22x6x6 | 1 | 34 | 218*28*32 | N |
◢DESCRIPTION
TILER 8200 Professional Manual Tile Cutter | Linear Rails for Large Format Tiles | OEM/ODM Wholesale Solutions for Distributors and Importers
Precision Linear Guides for Accurate Cutting：Equipped with high-precision linear guides to ensure straight, clean cuts every time, ideal for professional tiling projects requiring millimeter accuracy.
Ergonomic Handle with Seamless Sliding System：Features an ergonomic handle combined with a smooth sliding mechanism, reducing operator fatigue and ensuring effortless scoring motion for consistent results.
Built-in Transport Handles and Wheels for Mobility：Integrated handles and heavy-duty wheels provide easy maneuverability across job sites, simplifying transportation of the tool between different work areas.
Removable Support Frame with Movable Support Bar：The removable support frame and adjustable rail support bar offer flexible configuration options for handling various tile sizes up to 1800mm while maintaining cutting stability.
Rugged Aluminum Base Construction：Built with a durable aluminum base that offers optimal strength-to-weight ratio, ensuring long-term reliability in demanding construction environments.
Multi-Model Capacity Range：Available in multiple configurations with cutting capacities from 1200mm to 1800mm to accommodate different project requirements and tile sizes.
◢ MODELS FOR 8100T
▪ 8200-1200 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Cutting roller (cutter):22mm
▪ 8200-1600 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Cutting roller (cutter):22mm
▪ 8200-1800 ▪
Types: straight cut, diagonal cut
Accuracy: within 1.0mm
Minimum tile thickness:4mm
Maximum tile thickness:18mm
Base material: aluminum alloy
Guide rail material: alloy steel
Cutting roller (cutter):22mm
◢FAQ
What is the maximum tile size this cutter can handle?
The 8200 series offers multiple models with cutting capacities ranging from 1200mm to 1800mm. Please check the specific model specifications to select the appropriate size for your project requirements.
How does the seamless sliding system improve cutting performance?
Our precision-engineered sliding system ensures buttery-smooth movement of the cutting head, allowing for consistent pressure application during scoring. This results in cleaner breaks and significantly reduces the risk of tile chipping or uneven edges.
Is the tool easy to move around construction sites?
Yes, the 8200 features integrated heavy-duty wheels and built-in carrying handles, making it exceptionally easy to transport across job sites. The balanced design allows one-person operation for both cutting and mobility tasks.
What maintenance do the linear guides require?
The precision linear guides are designed for minimal maintenance. They feature protective seals that prevent dust and debris accumulation. Regular cleaning with a dry cloth and occasional lubrication with light machine oil will ensure optimal long-term performance.
Can the support system accommodate different tile thicknesses?
Absolutely. The movable rail support bar can be adjusted along the entire length of the base, while the removable T-square provides flexibility to handle various tile thicknesses from 4mm to 18mm, ensuring proper support for each specific material.
What safety features are included in the design?
The cutter incorporates multiple safety elements including a non-slip ergonomic handle for secure grip, stable rubberized feet to prevent shifting during operation, and a protective scoring wheel cover. Always wear appropriate safety glasses when operating the tool.
